Specification and Standards

Diameter:DN150～DN1500
Bending Radius: 1～10m
Maximun Wall Thickness: 50mm
Product Standards: ISO15590-1、SY/T5257-2004、Q/SY GJX111-2009、CDP-S-OGP-PL-016-2011-2 and user's other standards.
Product Purposes:The product is widely used in pressure pipelines in such industries as petroleum, natural gas ,chemicals, electric power, metallurgy, nuclear power and other industries. The product is the optimal option for long-distance pipelines.

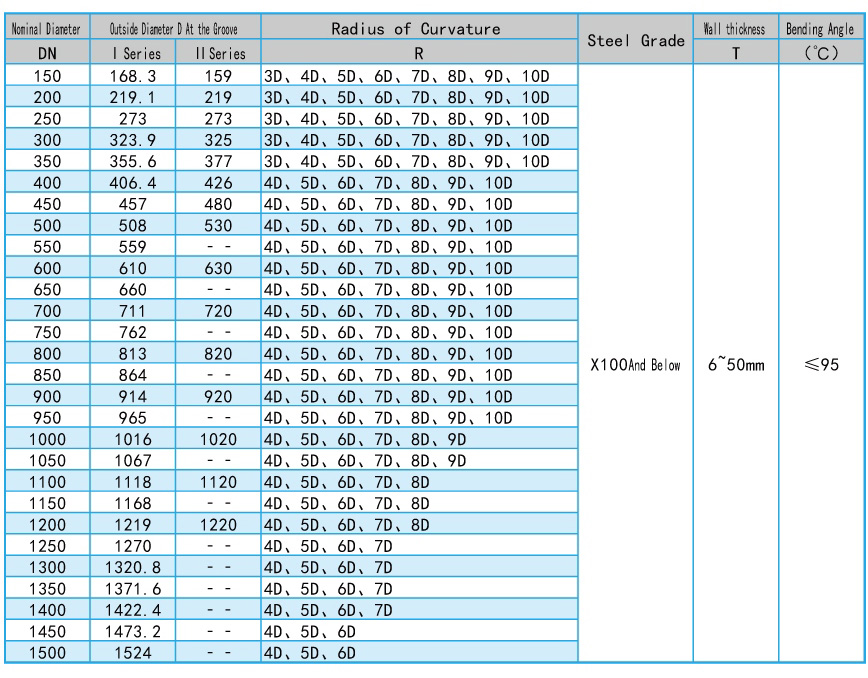

Product Catalogue

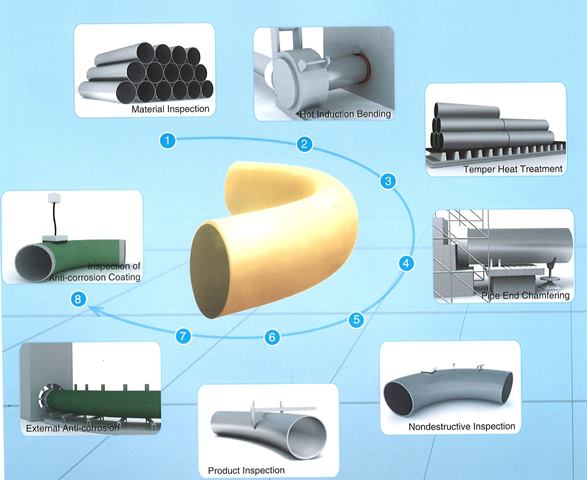

Production Process
